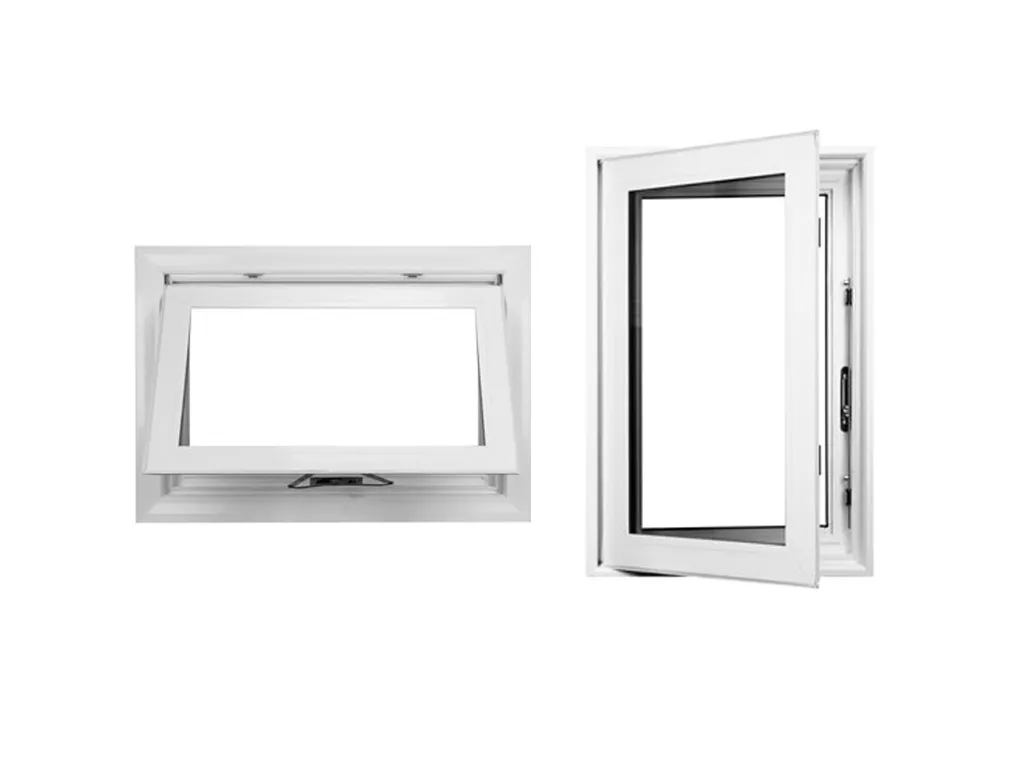

Aluminum Casement and Awning Windows

A versatile window with left or right horizontally swinging sash. Casements open a full 90 degrees

colors:

Request Your Price Now!Request Your Price Now! (opens in a new tab)

Additional details

20 micron anodizing thickness provides long-lasting finish and consistent color
Even sight lines for a balanced look
Miter cut frame and sash construction for structural integrity
Casements and Awnings feature a slim operator cover and handle engineered to deliver superior performance and strength with a patented two-directional fixing design
Operators provide optimized gear ratio for smooth operation of large sash and feature pre-fitted foam gasket for maximum air and water performance
Low profile operators with only 8 mm projection with brush gasket in the handle retainer which provides an insect barrier
SuperSpacer with high-quality silicone for outstanding performance of glass and edge seal durability
Screen: Standard screen is included

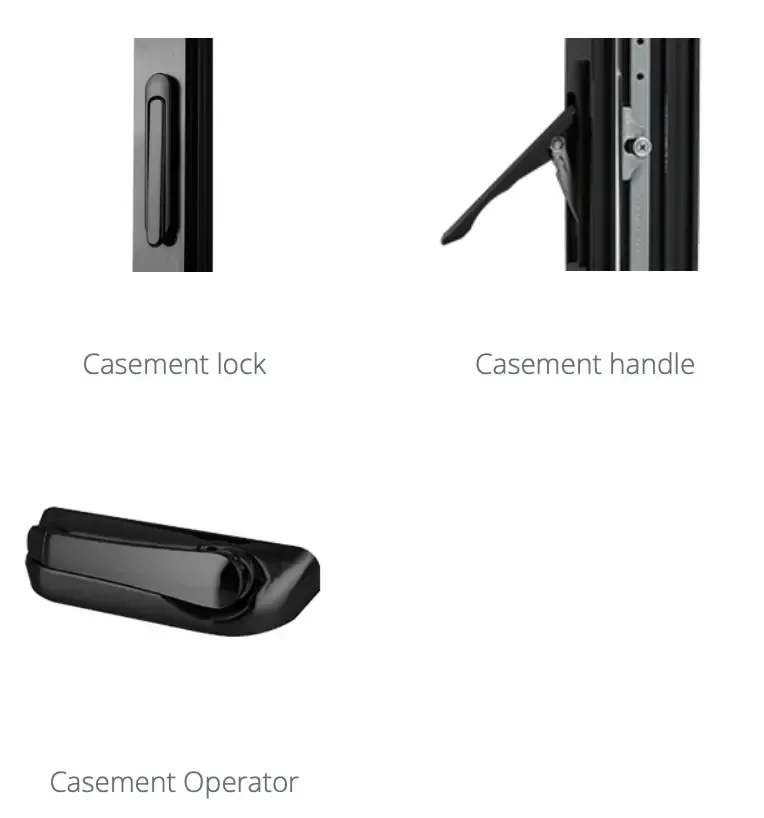

Operator & Locking System

The Operator features a two-directional fixing for superior strength and stability: smooth operation and maximum air/water performance.

Casement hardware opens full 90°
Hardware colors to match frame
Multi-point locking system

Operator & Locking Palette

White

Almond

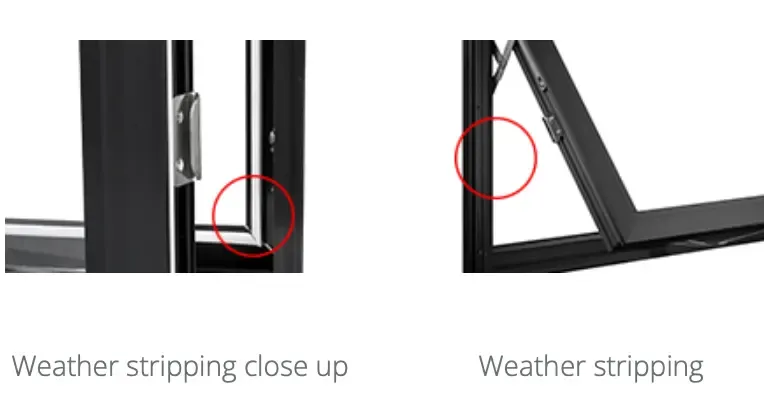

Double Weather Stripping

Full double weather stripping helps prevent elements infiltration.

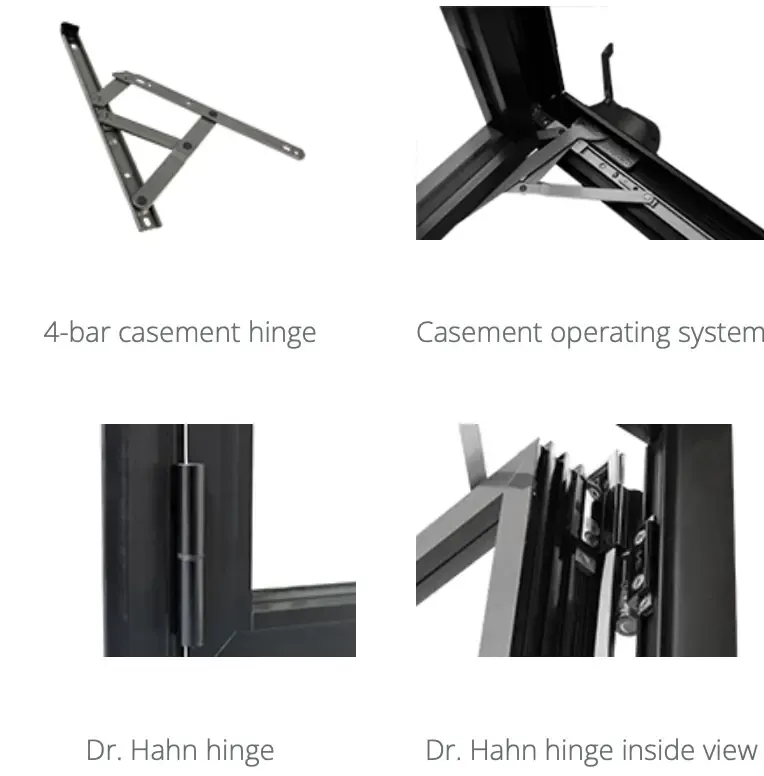

Casement & Awning Hinges

Standard Casement (CM)

Corrosion resistant, all stainless steel 4-bar hinges for casement and awning applications feature an asymmetrical design to maximize weather sealing as well as high gust loading.

Hinged Casement (CM)

Hinged Casements feature high-quality, strong aluminum hinges manufactured in Germany by Dr. Hahn, exclusively distributed by ASSA ABLOY.

Awning (AW)

Corrosion resistant, all stainless steel 4-bar hinges for casement and awning applications feature an asymmetrical design to maximize weather sealing as well as high gust loading.

TriplePane Glass

Our triple pane insulated glass unit consists of three layers of glass sealed with Duralite spacers. Inner glass chambers are filled with argon gas.

Along with better home insulation, a triple pane window is among the very best choices for an energy efficient home. Stop energy from escaping through inefficient windows, upgrade to new GS Series windows today!

2 LoE3 glass panes for maximum energy savings
2 inner chambers are filled with argon gas
Increased air space improves sound reduction efficacy
Patio door insulated glass units feature thicker glass

DuraPane

DuraPane laminated glass is an innovative glazing system similar to automobile windshield glass, consisting of a plastic safety interlayer placed between two sheets of glass on one of the glass panes of the insulated glass unit.

DuraPane laminated glass has excellent sound reduction properties, making it a great choice for areas with high noise levels.

Impact resistant glass panels
STC ratings using DuraPane can reach levels up to 34-36 (Individual product ratings may vary due to window size and glass options)

Glass Tint & Texture

Our variety of pattern glass designs are the preferred options for bathrooms, add character, privacy and dimension to windows or doors. Bronze and grey glass are available. Other glass patterns available upon request. Please contact your Value Sales Representative for more details.

Tint Options

Glass Tint & Texture

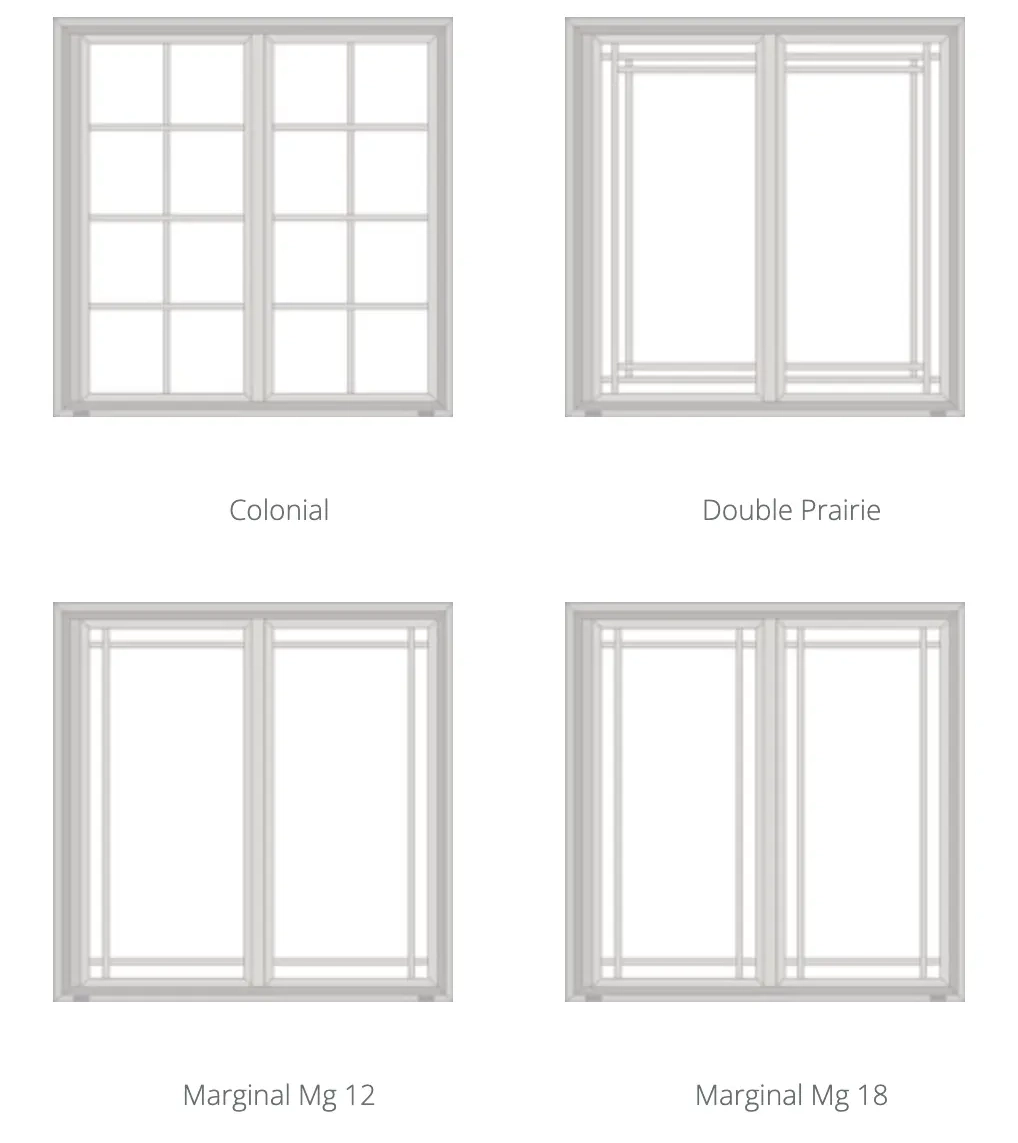

Add an elegant element to your windows and doors with a grid design. With several patterns to choose from and the benefit of having the grids placed inside the insulated glass unit, cleaning your windows is easy and convenient.
