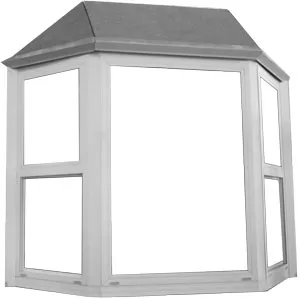

Galaxy Bay & Bow Window
Bay & Bow windows have projected sashes and feature side windows at an angle for Bay, and on a curve for Bow.
Galaxy bay windows feature a fixed window combined at 45 degrees with two casement or hung windows.
- Variety of Configurations
- Even Sight Lines
- Premium Hardware
Additional details
-
- Beveled, multi-chambered extruded vinyl improves energy efficiency while providing an aesthetic look
- Even sight lines for a balanced look
- Autolock for easy locking and heavy duty hardware on casements & awnings
- Tilt-in single and double hung models allow both sashes to tilt in for safe and easy cleaning from inside the home
- Hung models feature a constant force counterweight balance system
- Integral pull rail for easy operation of moving sash
- Steel and aluminum reinforced sashes for structural integrity
- 2-3/4″ frame depth for structural integrity
- Duralite spacer enhances thermal performance of glass components
- 3/4″ insulated glass unit featuring LoE3 glass
- Argon gas filled chambers for low heat transfer through the glass chambers
- Full weather stripping for enhanced thermal performance
-

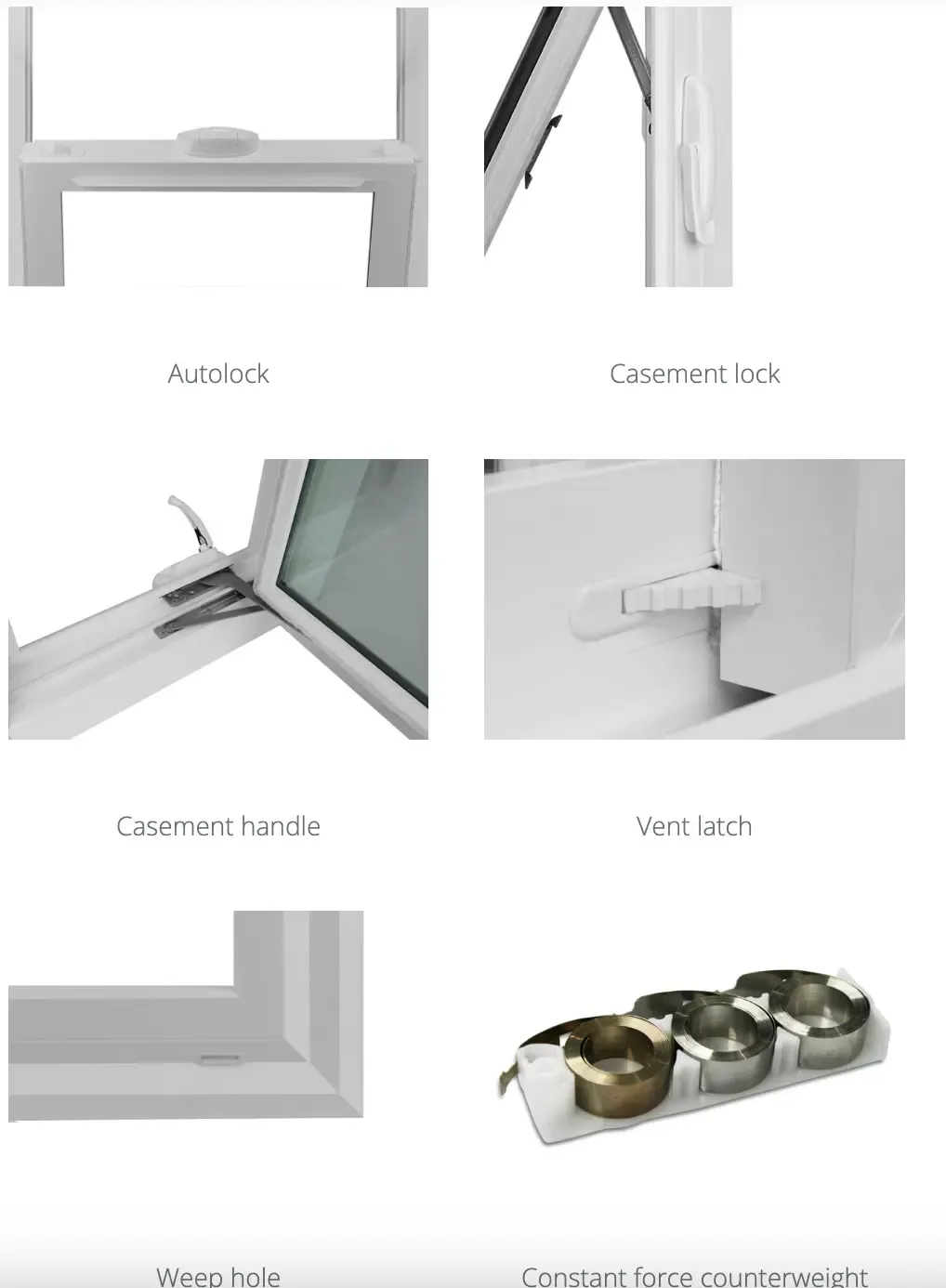

Handles & Locks
Automatic locks for horizontal and hung windows close and lock with one simple click, while casement window locks have been designed for smooth and easy operation.
- One-touch close and lock
- Modern, streamlined design
- Casement hardware opens full 90°
- Vent latch for adjustable ventilation
Handle & Lock Palette
WhiteAlmond
Window Rollers & Weep Holes
All metal window rollers provide durable and long lasting operation. Weep hole design prevents debris obstruction to vent water efficiently. Constant force counterweight balance on hung models allows for easy and quiet sash operation.
- Weep holes designed to prevent debris obstruction
- Constant force counterweight balance for hung models
-
Standard Dualpane Glass
Dual pane glass comes standard in all series and features LoE3 glass, argon gas filled chambers, and Duralite® spacers for excellent thermal performance and energy efficiency.
- High quality Cardinal® glass
- Argon gas filled chamber
- Duralite spacer with Warm Edge technology

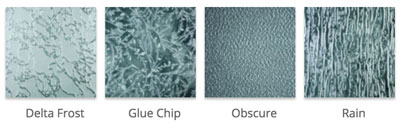

Glass Tint & Texture
Our variety of pattern glass designs are the preferred options for bathrooms, add character, privacy and dimension to windows or doors. Bronze and grey glass are available. Other glass patterns available upon request. Please contact your Value Sales Representative for more details.
Tint Options
Glass Tint & Texture
-

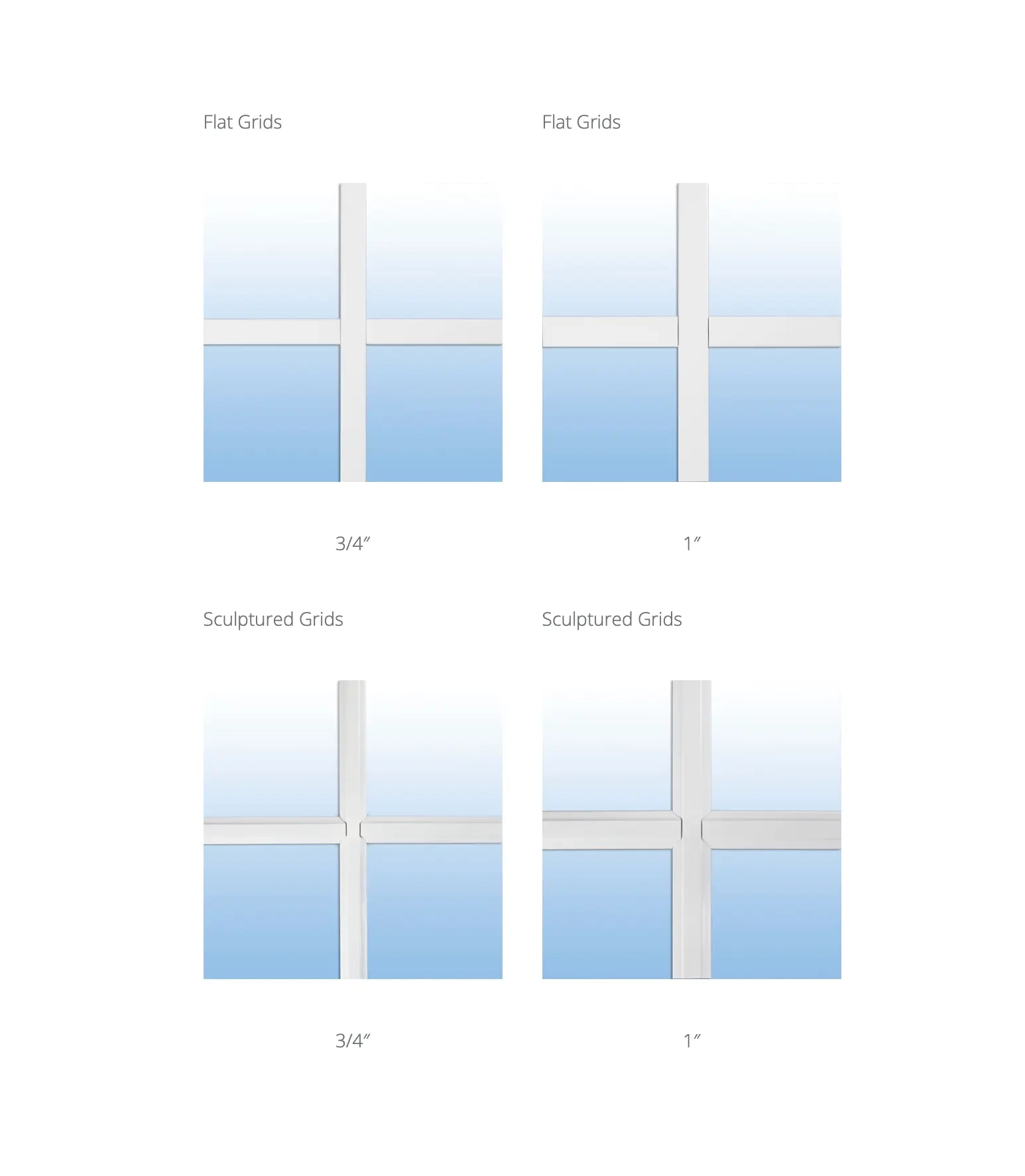

Add an elegant element to your windows and doors with a grid design. With several patterns to choose from and the benefit of having the grids placed inside the insulated glass unit, cleaning your windows is easy and convenient.

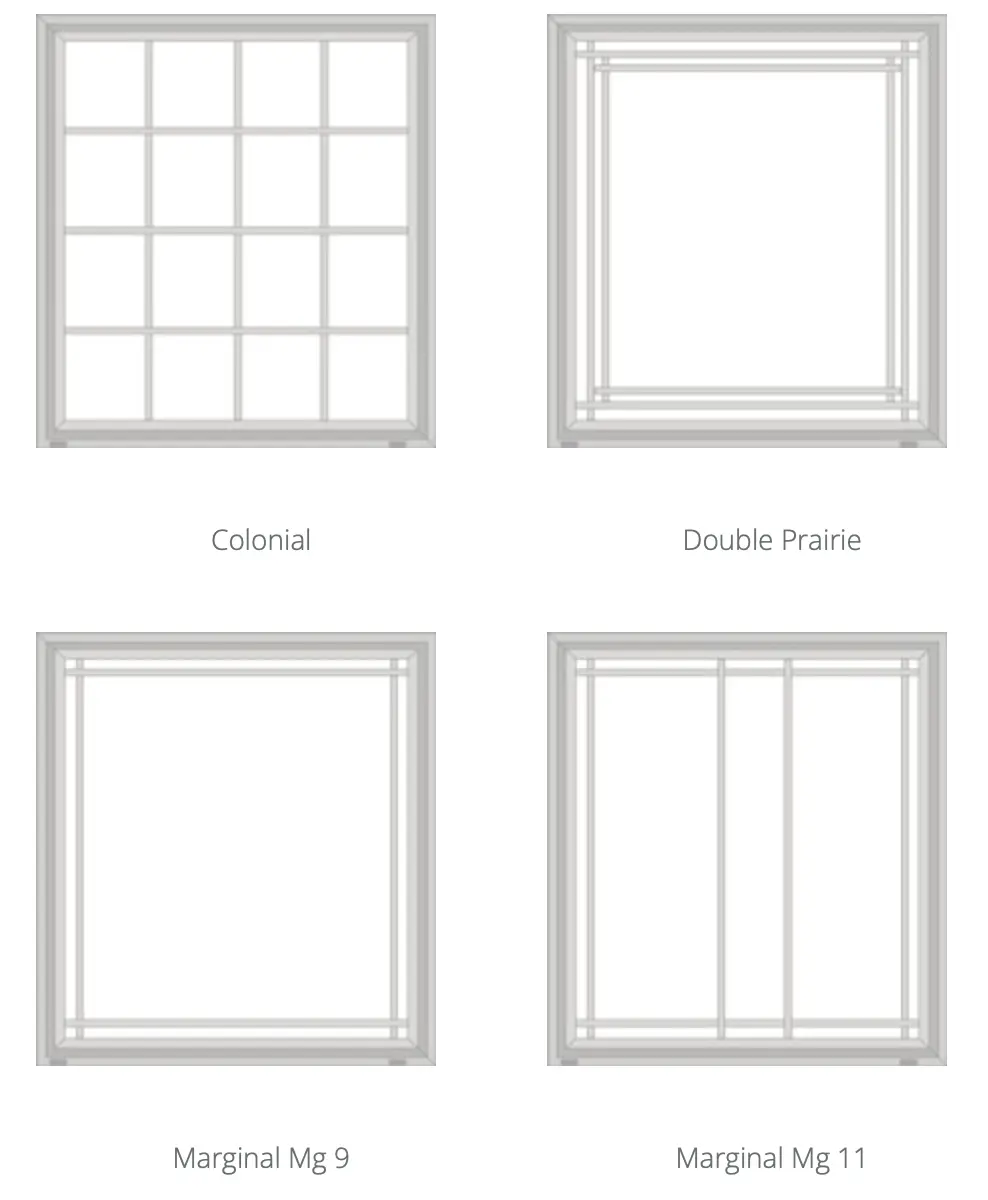

Grid Pattern
Add an elegant element to your windows and doors with a grid design. With several patterns to choose from and the benefit of having the grids placed inside the insulated glass unit, cleaning your windows is easy and convenient.
For a full collection of grid patterns & configurations, please contact your local Value Windows & Doors dealer.
-
Retrofit Frame
For replacement applications. The replacement flange allows for convenient installation with no need to break out stucco.
Block Frame
For replacement applications. Block with sloped sill adapter is also available.
Nail-On Frame
For new construction applications. This frame type allows targeted installation in a newly created opening.
